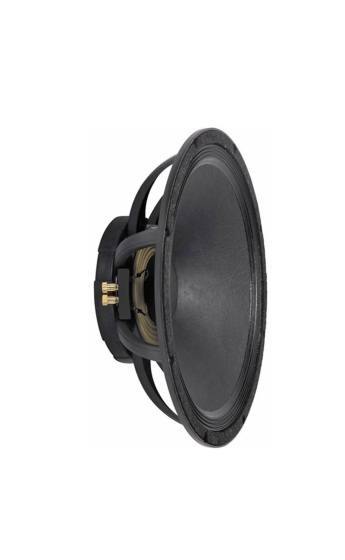

1801-8 LT BW

560480


1801-8 LT BW
1801-8 LT BW

Overview

Product Type: Speakers

Peavey Part Number: 00560480

Product It Fits: 118 Int HC, 118 Sub-8 HC, DS1803, HDH-3, SP118 8 Ohm, SP118P, SP218, 118 Sub Theater

Sensitivity: 97.0 dB / 1W 1m

Voice Coil Cooling: na

Net Weight: 18 lbs / 8.2kg

Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension

Nominal Impedance: 8 Ohms

Minimal Impedance: 7.1 Ohms

DC Resistance: 6.8 Ohms

Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1000 Hz

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H

Horn Coupling Diameter: na

Horn Coupling Threads: na

Shipping Weight: Standard: 25 lbs / 11.4 kg

Diaphragm Kit: 377380

Power - Peak: 1400W

Power - Program: 700W

Power - Continuous: 350W

Frequency Range: 35 Hz - 1 kHz

Voice Coil Diameter: 4.0" / 100mm

Voice Coil Material: Aluminium ribbon wire; Polymide-impregnated fibreglass former Nomax stiffener welded; OFHC copper leads.

Znom (ohms): 8.000

Revc (ohms): 6.230

BL (T/M): 18.000

Vas (Litres): 284.900

Cms (uM/N): 131.100

Mms (gm): 118.000

Qms: 5.590

Qes: 0.577

Qts: 0.523

Xmax (mm): 5.000

Le (mH): 0.300

SPL (1W 1m): 97.000

No (%): 3.180

Vd (cu. in. /ml): 75.6 / 1239

Pmax (Watts pgm): 700.000

Disp (cu. In. / ml): 228 / 3737

Replacement Basket: 560490

Specification

Commodity Code 8518900099
Manufacturer Peavey Spares
Barcode 0014367124347

Weights & Dimensions

Height (CM) 21.08
Width (CM) 51.05
Depth (CM) 53.09
Weight (Kg) 10.55
