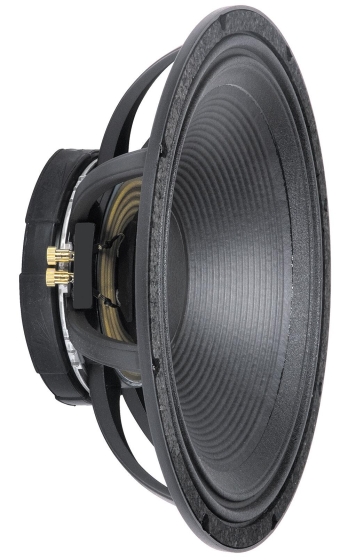

18" Lo Rider -8

560600


18" Lo Rider -8
18" Lo Rider -8

Overview

Product Type: Speakers

Peavey Part Number: 00560600

Product It Fits: Q-Factor 218, QW 118, QW 118P, QW 218F, SP FH, SSE 118, QW 218

Sensitivity: 97.3 dB / 1W 1m

Voice Coil Cooling: na

Net Weight: 22 lbs / 10kg

Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension

Nominal Impedance: 8 Ohms

Minimal Impedance: 7.1 Ohms

DC Resistance: 6.8 Ohms

Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1000 Hz

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H

Horn Coupling Diameter: na

Horn Coupling Threads: na

Shipping Weight: Standard: 25 lbs / 11.4 kg

Diaphragm Kit: 377380

Power - Peak: 3200W

Power - Program: 1600W

Power - Continuous: 800W

Frequency Range: 25 Hz - 1 kHz

Voice Coil Diameter: 4.0" / 100mm

Voice Coil Material: Polyimide coated copper ribbon wire; Polyimide-impregnated fibreglass former; Nomex stiffener; OFHC copper leads.

Znom (ohms): 8.000

Revc (ohms): 6.210

BL (T/M): 22.170

Vas (Litres): 288.000

Cms (uM/N): 113.300

Mms (gm): 198.200

Qms: 9.070

Qes: 0.451

Qts: 0.429

Xmax (mm): 9.600

Le (mH): 0.870

SPL (1W 1m): 96.000

No (%): 2.650

Vd (cu. in. /ml): 145 / 2375

Pmax (Watts pgm): 1600.000

Disp (cu. In. / ml): 235 / 3852

Replacement Basket: 560610

Specification

Commodity Code 8518900000
Manufacturer Peavey Spares
Barcode 0014367124361

Packaged Weight & Dimensions

Height (CM) 21.08
Width (CM) 51.05
Depth (CM) 53.09
Weight (Kg) 12.3
