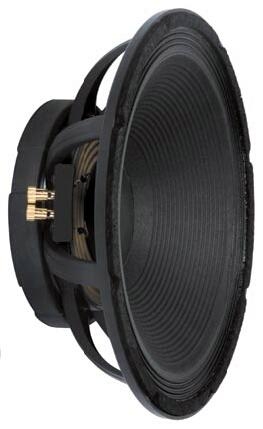

1505-8 KA DT BW

560120


1505-8 KA DT BW
1505-8 KA DT BW

Overview

Product Type: Speakers

Peavey Part Number: 00560120

Product It Fits: 115 Int. Series III Black, DTH Sub, HDH1, HDH2, SP 115M, SP2G, SP2Ti, SP3G, SP7G, UDH Sub Woofer, SP1G

Sensitivity: 99.0 dB / 1W 1m

Voice Coil Cooling: na

Net Weight: 17 lbs / 7.7 kg

Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension

Nominal Impedance: 8 Ohms

Minimal Impedance: 7.1 Ohms

DC Resistance: 6.8 Ohms

Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1000 Hz

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H

Horn Coupling Diameter: na

Horn Coupling Threads: na

Shipping Weight: Standard: 25 lbs / 11.4 kg

Diaphragm Kit: 377380

Power - Peak: 1400W

Power - Program: 700W

Power - Continuous: 350W

Frequency Range: 40 Hz - 2 Hz

Voice Coil Diameter: 4.0" / 100mm

Voice Coil Material: Aluminium ribbon wire; Polyimide-impregnated fibreglass former Nomex stiffened; OFHC copper leads

Znom (ohms): 8.000

Revc (ohms): 5.230

BL (T/M): 17.700

Vas (Litres): 143.500

Cms (uM/N): 145.300

Mms (gm): 68.500

Qms: 7.600

Qes: 0.367

Qts: 0.350

Xmax (mm): 0.900

Le (mH): 0.280

SPL (1W 1m): 99.000

No (%): 4.500

Vd (cu. in. /ml): 4.6 / 76

Pmax (Watts pgm): 700.000

Disp (cu. In. / ml): 197 / 3229

Replacement Basket: 560130

Specification

Commodity Code 8518900099
Manufacturer Peavey Spares
Barcode 0014367124675

Weights & Dimensions

Height (CM) 18.03
Width (CM) 44.45
Depth (CM) 46.48
Weight (Kg) 7.8
