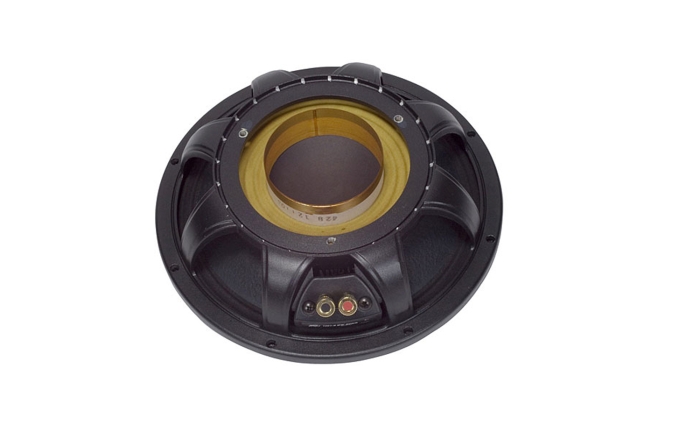

1201-8 Ohm BW

560700

---

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Login To Order

Overview

Product Type: Speakers

Peavey Part Number: 00560700

Product It Fits: 1245M, 2445 Monitor, SP112M, 112HS

Sensitivity: 98.5 dB / 1W 1m

Voice Coil Cooling: na

Net Weight: 16 lbs / 7.3 kg

Throat Parameter: Standard: 2" / 50.8 mm; Optional: 1.6" / 40.6mm; Supplied with throat extension

Nominal Impedance: 8 Ohms

Minimal Impedance: 7.1 Ohms

DC Resistance: 6.8 Ohms

Power Capacity 1Khz - 20Khz: 500 Hz to 20000 Hz

Nominal Efficiency: 30%

Frequency Response: 500 Hz to 2000 Hz

Recommeded Crossover: 1000 Hz

Lowest Recommended Crossover: 500 Hz at 12 dB / Octave

Dimensions: Standard: 8.388" (213mm)D x 6.05" (154mm) H

Horn Coupling Diameter: na

Horn Coupling Threads: na

Shipping Weight: Standard: 25 lbs / 11.4 kg

Diaphragm Kit: 377380

Power - Peak: 1400W

Power - Program: 700W

Power - Continuous: 350W

Frequency Range: 60 Hz - 3.5 kHz

Voice Coil Diameter: 4.0" / 100mm

Voice Coil Material: Aluminium ribbon wired; Plyimide-impregnated fibreglass former Nomex stiffened; OFHC copper leads

Znom (ohms): 8.000

Revc (ohms): 6.520

BL (T/M): 19.600

Vas (Litres): 66.300

Cms (uM/N): 172.800

Mms (gm): 44.400

Qms: 4.840

Qes: 0.270

Qts: 0.257

Xmax (mm): 2.600

Le (mH): 0.370

SPL (1W 1m): 98.500

No (%): 4.490

Vd (cu. in. /ml): 16.5 / 270

Pmax (Watts pgm): 700.000

Disp (cu. In. / ml): 109 / 1797

Replacement Basket: 560710
