Aguilar OBP-3 Preamp 3 band Boost / Cut - Stacked Push-Pull

OBP3SKPP


Aguilar OBP-3 Preamp 3 band Boost / Cut - Stacked Push-Pull
Aguilar OBP-3 Preamp 3 band Boost / Cut - Stacked Push-Pull The OBP Preamp Series

Overview

Aguilar preamps have high headroom, low distortion and the ability to reproduce the full dynamic range of your instrument. Get the “Aguilar Sound” onboard your bass in an affordable, easy to install package. A great upgrade for any bass!

OBP3SKPP: Includes stacked Treble/Bass pot and separate Mid pot. Mid pot is push/pull for Midrange frequency selection

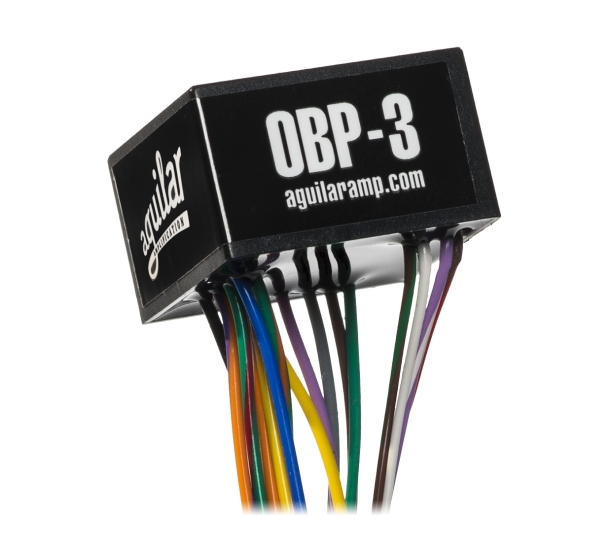

OBP-3 Preamp: 3 band, boost / cut. 9 or 18 volt on board preamp.

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options, and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.

  • Bass control: plus/minus 18 dB @ 40 Hz
  • Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User selectable frequency center
  • Treble control: plus/minus 16 dB @ 6.5 KHz
  • Input impedance: 1 meg ohm
  • Output impedance: 100 ohm 9 or 18 volts operation
  • Distortion: .019 into 10k ohm load
  • Noise: -95 dBm unweighted
  • Battery life: 324 hours
  • Wire lead length: 6.50 inches
  • Low noise discrete FET input stage, center detent 50 K linear pots,with a dual concentric pot available
  • Dimensions: 0.98″W x 0.98″L x 0.59″D

Specification

Commodity Code 9209940000
Manufacturer Aguilar
Country of Origin USA
Barcode 824599000599
Master Carton 1
Instrument Type Bass Guitar

Packaged Weight & Dimensions

Height (CM) 7.5
Width (CM) 18
Depth (CM) 23
Weight (Kg) 0
