Aguilar OBP-2 Preamp 2 Band Boost / Cut - Separate

OBP2TK


Aguilar OBP-2 Preamp 2 Band Boost / Cut - Separate
Aguilar OBP-2 Preamp 2 Band Boost / Cut - Separate The OBP Preamp Series

Overview

Aguilar preamps have high headroom, low distortion and the ability to reproduce the full dynamic range of your instrument. Get the “Aguilar Sound” onboard your bass in an affordable, easy to install package. A great upgrade for any bass!

OBP2TK: Includes separate Treble and Bass pots

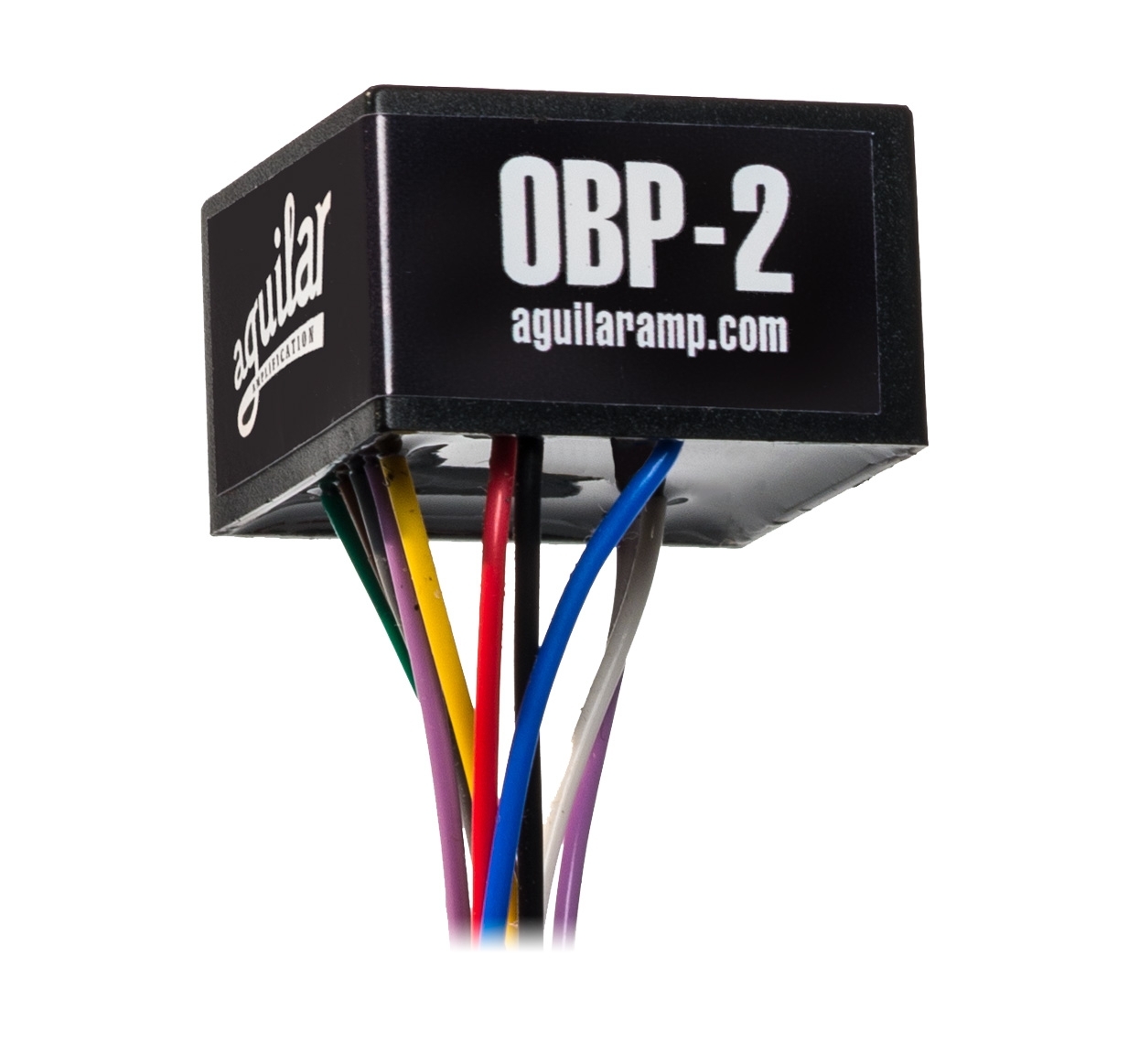

OBP-2 Preamp: 2 band, boost / cut. 9 or 18 volt on board preamp.

The OBP-2 was designed to give bassists fat tone while being small enough to fit into tight control cavities. Wire this preamp with one 9 volt battery and it will fit into just about any instrument. With +/-18dB of boost and cut at 40Hz and +/- 16dB of treble boost and cut at 6.5 kHz you have can emphasize just the right frequencies to make your bass sound great in any mix.

  • Bass control: plus/minus 18 dB @ 40 Hz
  • Treble control: plus/minus 16 dB @ 6.5 KHz
  • Input impedance: 1 meg ohm
  • Output impedance: 100 ohm 9 or 18 volts operation
  • Distortion: .019 into 10k ohm load
  • Noise: -95 dBm unweighted.
  • Battery life: 324 hours
  • Wire lead length: 6.50 inches
  • Low noise discrete FET input stage, center detent 50 K linear pots, with a dual concentric pot available
  • Dimensions: 0.98″W x 0.98″L x 0.59″D

Specification

Commodity Code 9209940000
Manufacturer Aguilar
Country of Origin USA
Barcode 824599000711
Master Carton 1
Instrument Type Bass Guitar

Packaged Weight & Dimensions

Height (CM) 7.5
Width (CM) 18
Depth (CM) 23
Weight (Kg) 0
